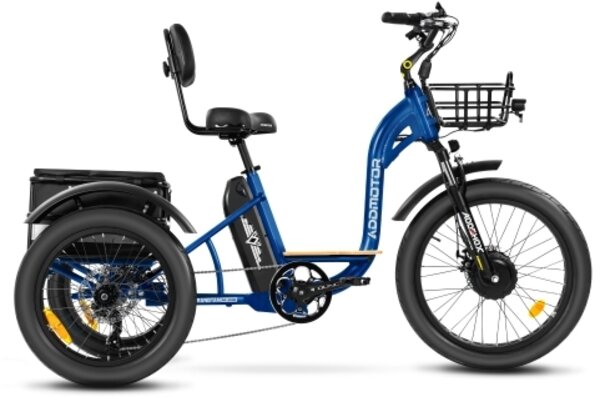

Addmotor M-340C Grandtan City Electric Trike Blue

Addmotor M-340C Grandtan City Electric Trike Blue
This item is currently not available.

Details

Electronics
Motor - Bafang 48V*750W Front Brushless Hub Motor, 80 Nm Torque
Battery - Samsung 48V*20Ah (960Wh) with 3200 Cells Battery, Charging Time 10 Hours, Rated For 1,000-1,500 Charge Cycles
Display - Addmotor 5-Inch LCD Display
Controller - Addmotor 25A Controller
Throttle - Right Hand Half Twist Throttle with Switch
Lights - Front: Electric Headlight TRENDO by Spanninga
Rear: Electric Taillight & Braking Light SOLO by Spanninga
USB Port Integrated into Display, 5V, 1Amp
Pedal Assist - Intelligent 7-Level Pedal Assist, Cadence Sensor
Charger - 48V*2.0A 5 Pins, US Standard DC Charger, 5 Pins With Auto Magnetic Suction
Range - 90+ Miles Per Charge with PAS 1(Estimate)

Components
Frame - 6061 Aluminum Alloy Frame
Front Fork - Oil Spring Fork with 80mm of Travel
Brake - Tektro Mechanical Disc Brake with Motor Cutoff Sensor
Brake Rotors - 180mm F / 2*180mm Rear
Stem - Aluminum 100mm + Adjustable Angle (90°)
Tires - Kenda GIGAS 24" X 3.0" F/ 20" X 3.0" R Mini Fat Tires
Grips - Durable Ergonomic Design
Handlebar - Black Aluminum, 630mm Wide, Sweep Back
Seat Post - Aluminum 270mm x 27.2mm
Saddle - Addmotor Exclusive Well-Padded Saddle with Backrest
Seatpost Clamp - Quick Release
Rims - Aluminum Double Wall, 36H
Spokes - Stainless Steel, F: 12-Gauge, R: 13-Gauge
Pedals - Wellgo Aluminum with Reflectors, Standard 9/16'' x 20 TPI Threading
Fenders - Aluminum, Front Included
Basket - Front: Removable, Aluminum
Rear: Removable, Aluminum, 100lbs Carrying Capacity
Crankset - Prowheel Ounce, 48T Chainring, 170mm Crank Length
Derailleur - SHIMANO TOURNEY TY300 Rear Derailleur, 7-Speed
Shifter
SHIMANO TOURNEY Right Thumb Shifter 7-Speed, SIS Index System
Freewheel - SHIMANO SIS Index 7-Speed, 14-32T
Chain - KMC Rust Resistant Chain
